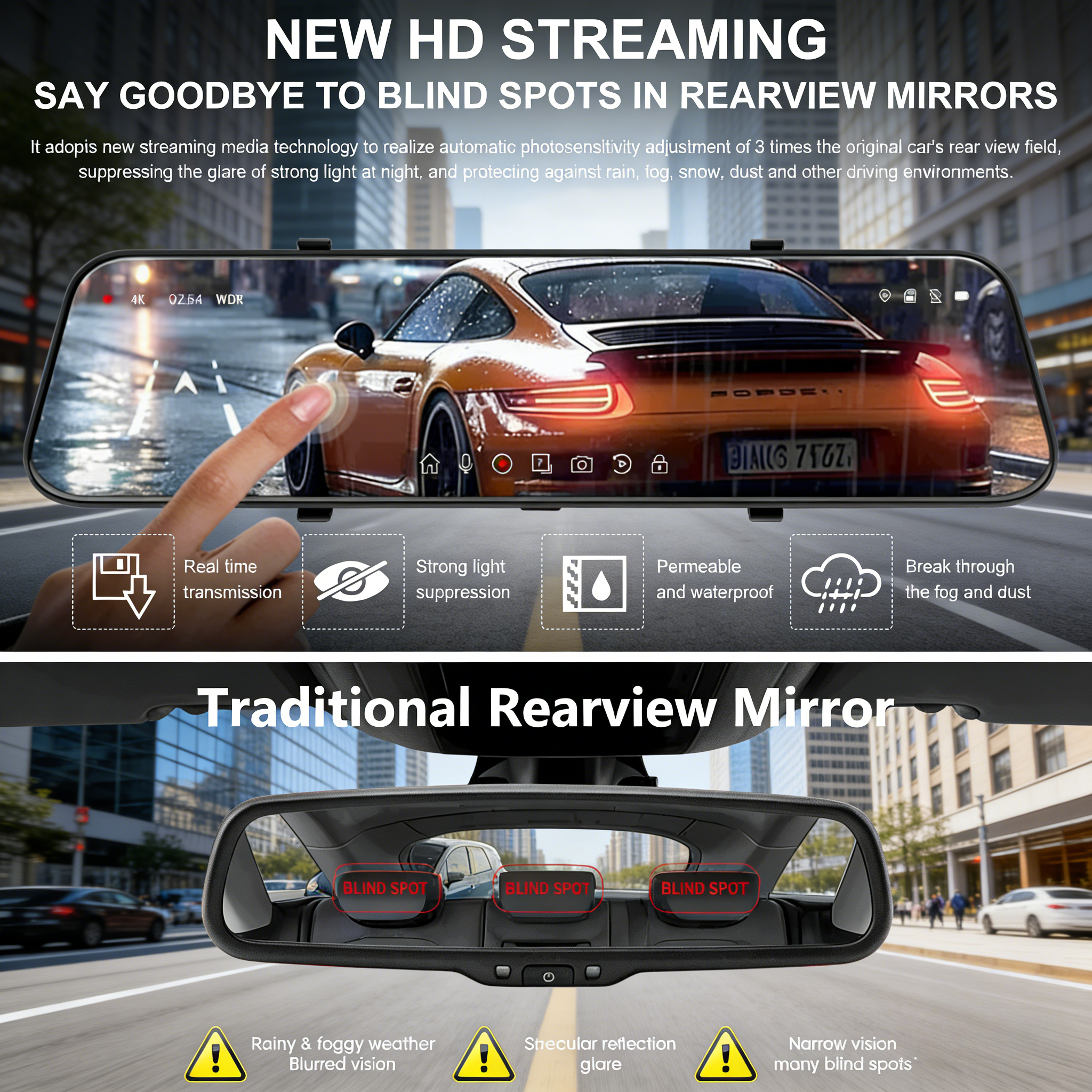

Rearview Mirror Camera: 10 Inch FHD 1080P Dual Dash Cam with Touch Screen
Rearview Mirror Camera Optics: Generalplus Chipset and GC2053 Sensor Architecture
The Generalplus chipset processes dual 2MP GC2053 sensor data at 30 frames per second, yielding 1920x1080P front and rear video streams that allow drivers to read license plates and highway signage clearly. The front lens features a 170-degree wide-angle view with F2.0 aperture and a 6-glass structure, maximizing light intake during low-light driving. Hardware Wide Dynamic Range technology balances oncoming headlight glare and dark shadows in real time to prevent overexposure. The rear lens pairs a 140-degree view with F2.2 aperture and a 4-glass structure inside a waterproof housing rated for external mounting. For broader technical background on vehicle recording technology, consult the Wikipedia dashcam technology guide.
- Front resolution: 1920x1080P Full HD at 30 fps powered by Generalplus processing.
- Rear resolution: 1920x1080P Full HD at 30 fps with waterproof housing and 6-meter cable.

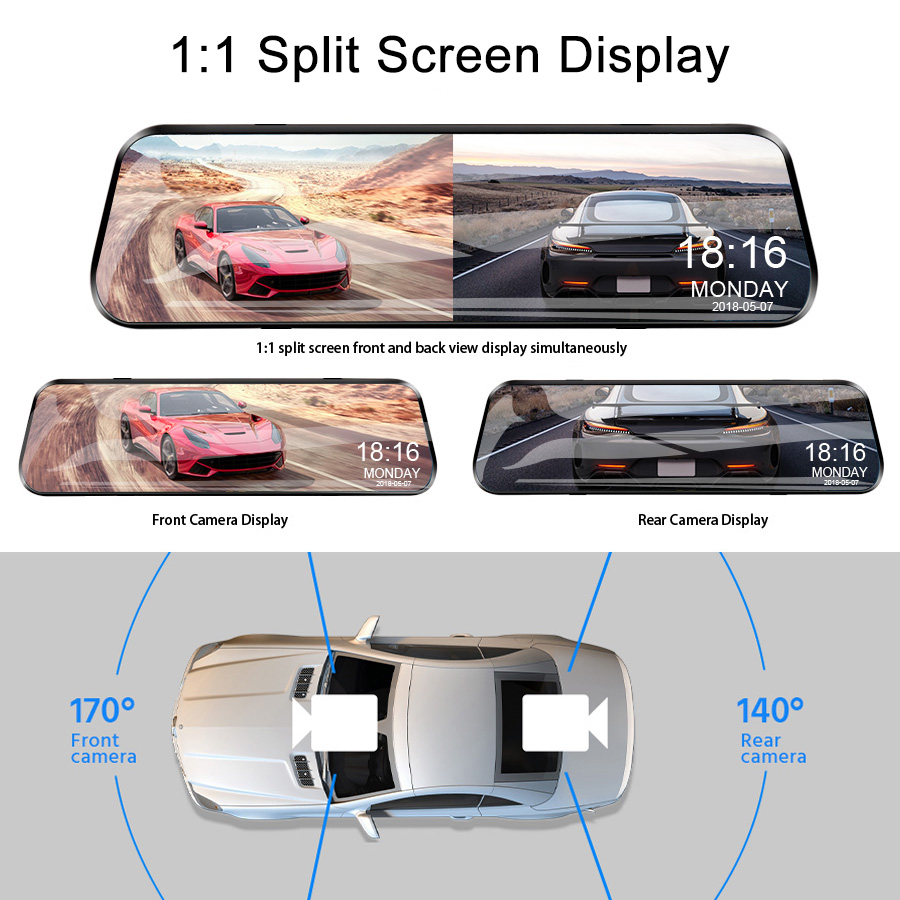

- Optical architecture: 170-degree front wide-angle (6-glass, F2.0) and 140-degree rear (4-glass, F2.2).
- Power architecture: 12V vehicle charger with built-in micro battery for time and system settings backup.

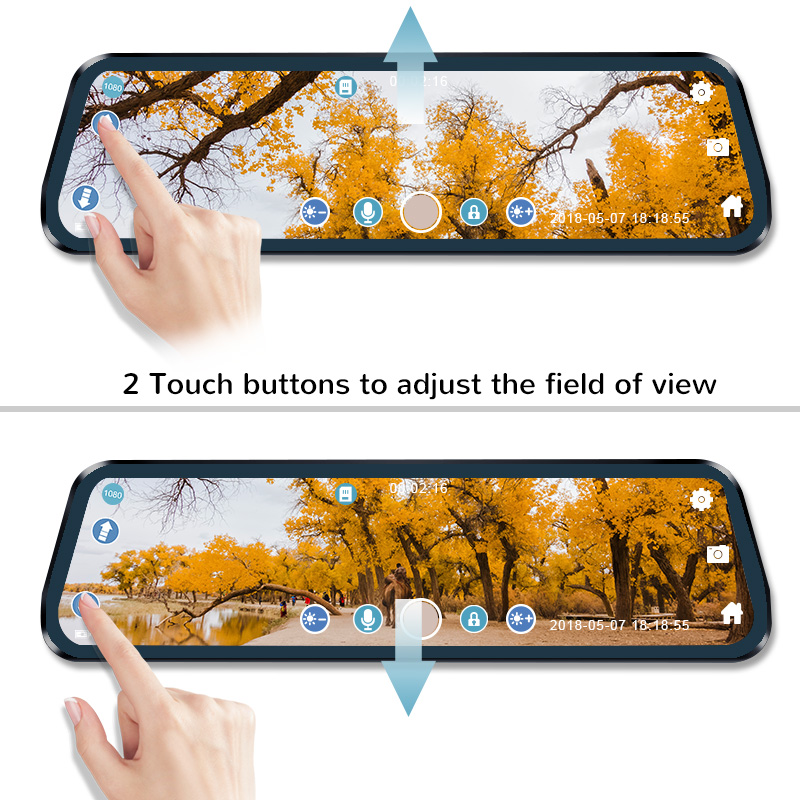

10-Inch IPS Touch Screen Control and Loop Recording Mechanics
The 10.0-inch IPS touch screen provides an intuitive control hub with split-screen picture-in-picture views that outperform standard small-screen monitors. Essential built-in features include emergency G-Sensor file locking, seamless cycle loop recording, motion detection, and parking monitor capabilities. The internal micro battery stores time and system settings only — the unit must remain plugged into the 12V car charger during operation. To maximize total vehicle protection, combine this optical security with our 4K dashboard camera collection for supplementary cabin coverage.
Practical Cabin Evaluation, Category Comparison, and Best-For Segmentation

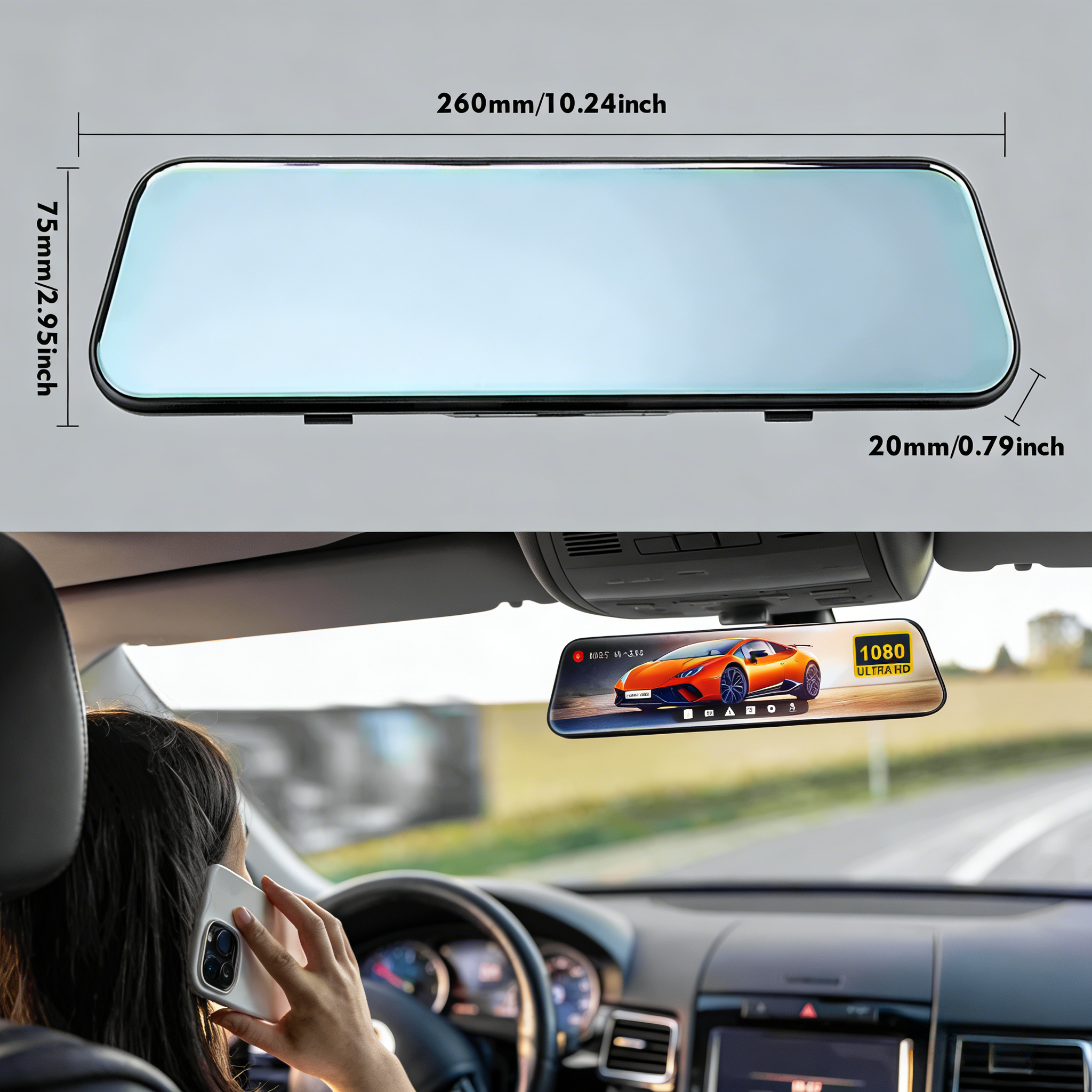

The mirror overlay secures firmly over factory rearview glasses using high-tension rubber straps, completely eliminating vibration over rough roads. The 10-inch IPS display automatically adjusts brightness to prevent night glare, dimming approximately 60 percent within two seconds of ambient light change. Installation takes approximately 45 minutes, routing the 6-meter rear cable along the front headliner, down the passenger-side A-pillar behind the trim, under the door sill plate, and into the trunk or tailgate mounting position. Compared to a basic rear back camera for car use that only activates during reverse gear, this continuous-loop mirror dash cam records front and rear video whenever the ignition cycles on. Compared to a factory digital rearview mirror requiring CAN bus integration and professional disassembly, this overlay unit installs reversibly with rubber straps and preserves original glass reflectivity. Compared to legacy Novatek-chipset mirror cameras, this Generalplus architecture prioritizes thermal stability and power efficiency over peak frame rate, trading 4K capture for sustained operation in summer cabin temperatures.
Best for: Daily commuters and rideshare drivers needing continuous front-rear video documentation for insurance claims and traffic dispute defense on 12V passenger vehicles.
When to choose an alternative: Drivers needing 4K front resolution or sub-zero cabin operation should consider a Novatek 96663-based system with supercapacitor power; owners of leased vehicles requiring CAN bus integration should choose a factory digital rearview mirror.
| Ventajas Operativas (Pros) | Consideraciones Técnicas (Cons) |
|---|---|
| 10-inch IPS touch screen with dual 1080P recording and GC2053 sensors | Requires routing the 6-meter rear cable along headliner and passenger A-pillar trim |
| Stable Generalplus chipset with WDR night vision and thermal management | Internal micro battery stores settings only; must stay connected to 12V during operation |
| G-Sensor emergency lock, loop recording, motion detection, and parking monitor | Requires Class 10 MicroSD card (32GB to 128GB) — not included in standard package |
Technical Specifications and Engineering Standards
The following Entity-Attribute-Value table summarizes the verified processor, optical, electrical, and physical parameters of the dual dash cam system.
| Engineering Attribute | Verified Specification |
|---|---|
| Fitment Type | Universal-Fit overlay strap (compatible with 12V vehicle systems) |

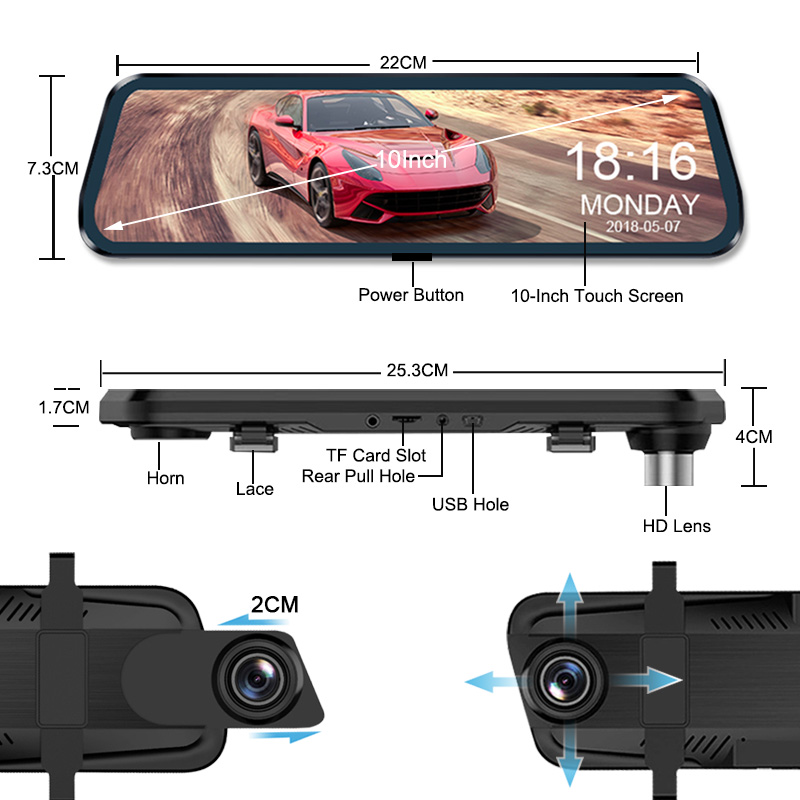

| Display Screen | 10.0-inch IPS touch screen (9.88-inch active display area) |
| Processor and Sensors | Generalplus chipset with dual 2MP GC2053 CMOS sensors |
| Front Video Resolution | 1920x1080P Full HD at 30 fps |
| Rear Video Resolution | 1920x1080P Full HD at 30 fps (waterproof housing) |
| Lens Configuration | 6-glass front (170°, F2.0) + 4-glass rear (140°, F2.2) |
| Power Architecture | 12V vehicle charger with internal micro battery for settings backup |
| Memory Support | MicroSD Card Class 10 (32GB to 128GB, not included) |
| Core Functions | G-Sensor, loop recording, motion detection, parking monitor |
| Rear Cable Length | 6.0 meters shielded harness (approx. 45 min cabin installation) |
Rearview Mirror Camera FAQs: Touch Screen, Power, and Installation Questions
-
What distinguishes a rearview mirror camera from a factory reversing camera?
- A reversing camera activates only during reverse gear engagement, while a rearview mirror camera records continuous front and rear video whenever the ignition is on. This dual-channel system documents highway incidents that reverse-only cameras miss entirely.
-
Does the touch screen dash cam work without being plugged into the charger?
- No. The internal micro battery stores only time and system settings, not operational power. The unit must remain connected to the 12V car charger during recording to maintain continuous loop capture.
-
How long does the 6-meter rear cable installation take on most vehicles?
- Installation takes approximately 45 minutes. The rear cable routes along the front headliner, down the passenger-side A-pillar behind the trim, under the door sill plate, and into the trunk or tailgate mounting position.

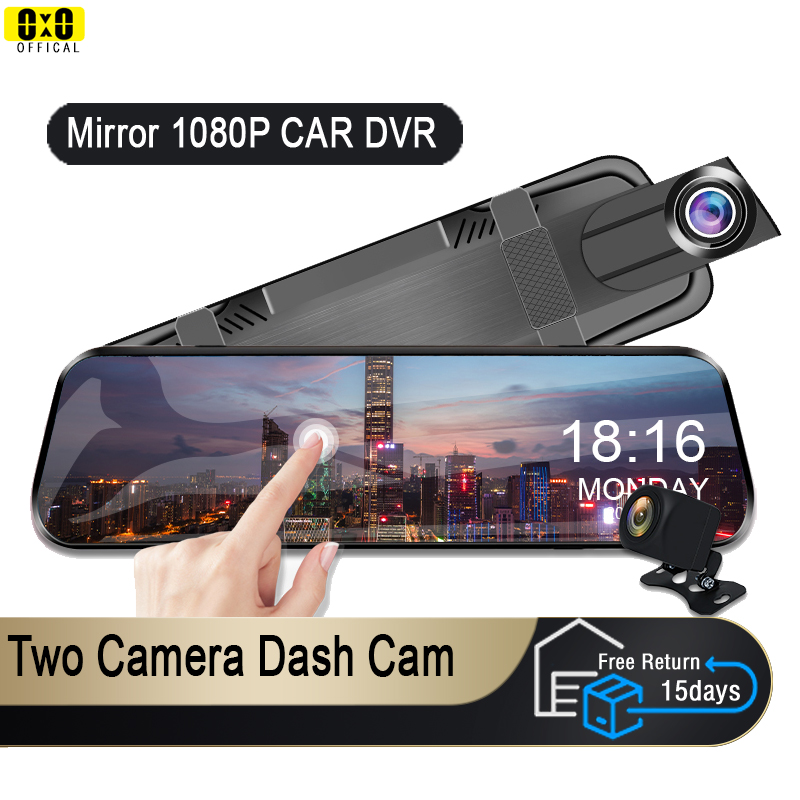

Package Contents and Installation Workflow

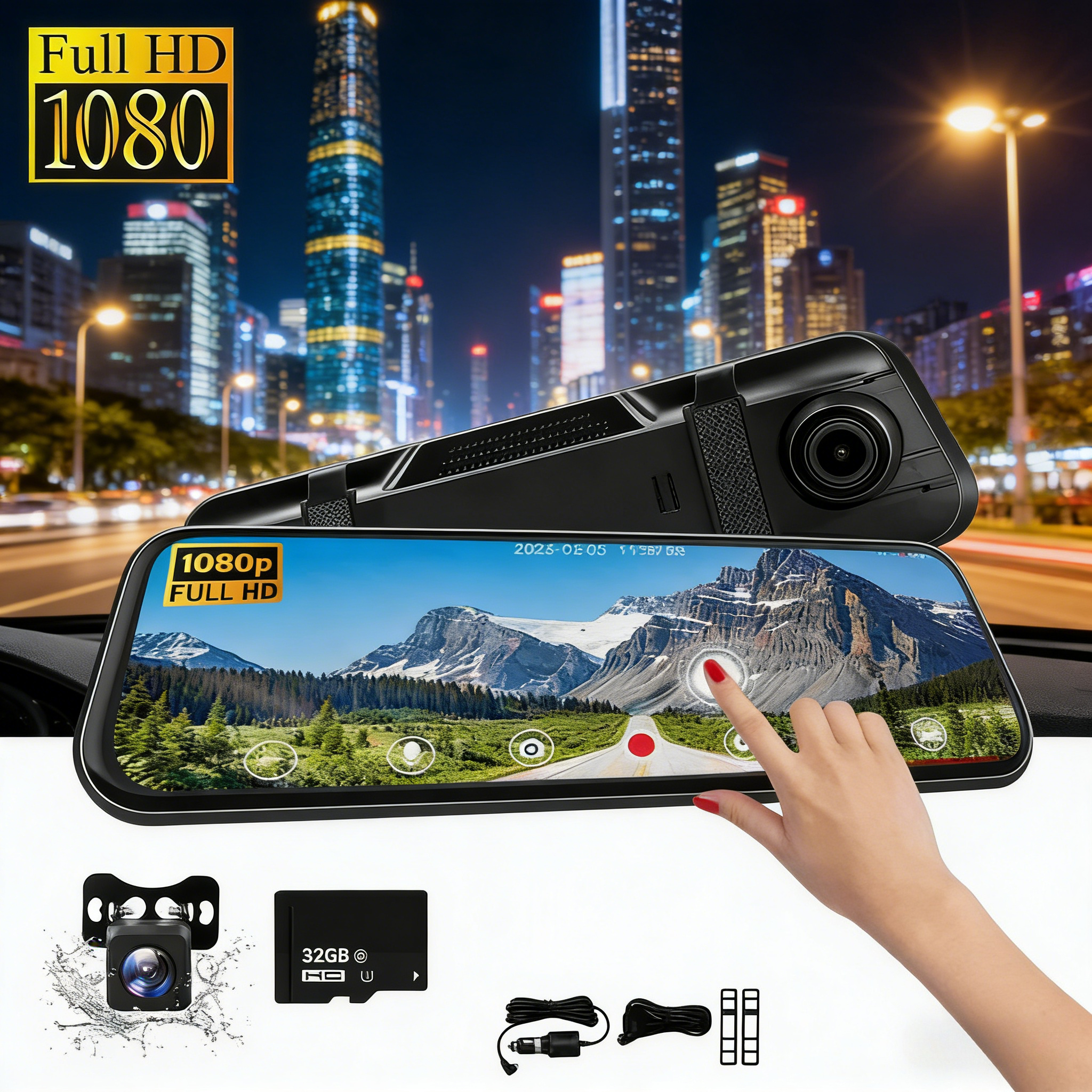

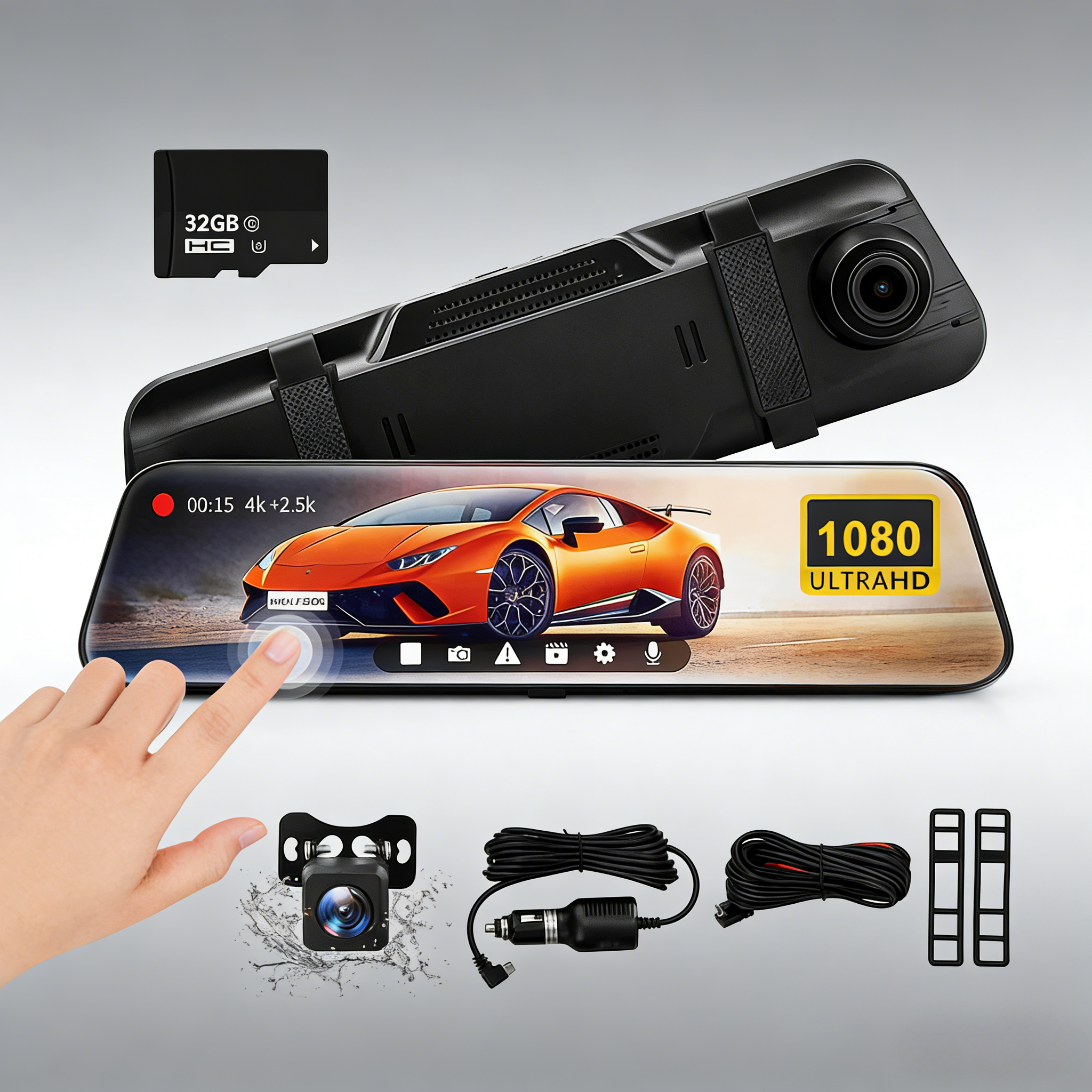

The package includes the DVR mirror unit, original 12V power charger, user manual, and the 1080P waterproof rear camera with a 6-meter cable. Installation requires approximately 45 minutes by routing the rear cable safely behind interior trim panels away from airbag deployment zones. Shipping is available across the United States, Canada, and Mexico with bilingual EN/ES technical support for installation and compatibility inquiries.
