Dash Cam for Trucks: 4K Front Camera with Optional GPS, Rear Camera, and Parking Monitor

Dash Cam for Trucks Optics: GC4653 Sensor and 4K Front Lens Architecture
The GC4653 image sensor processes front video at 3840 by 2160 resolution and up to 30 frames per second, while the rear camera module (on selected packages) records 1920 by 1080 at 25 frames per second. The front lens assembly uses six glass elements with a 170-degree wide-angle view and an F1.8 aperture that maximizes light intake during low-light highway driving. Hardware NightShot, Wide Dynamic Range, 3D DNR, and automatic white balance balance oncoming headlight glare and dark shadows in real time to prevent overexposure. The on-device 1.47-inch IPS display with a 16:9 ratio provides immediate playback verification without requiring a smartphone connection. For authoritative background on dashboard recording technology, consult the NHTSA driver-distraction guidance.
- Front resolution: 3840 by 2160 (4K Ultra HD) at up to 30 fps via GC4653 sensor.
- Rear resolution: 1920 by 1080 (Full HD) at 25 fps on selected rear-camera package options.

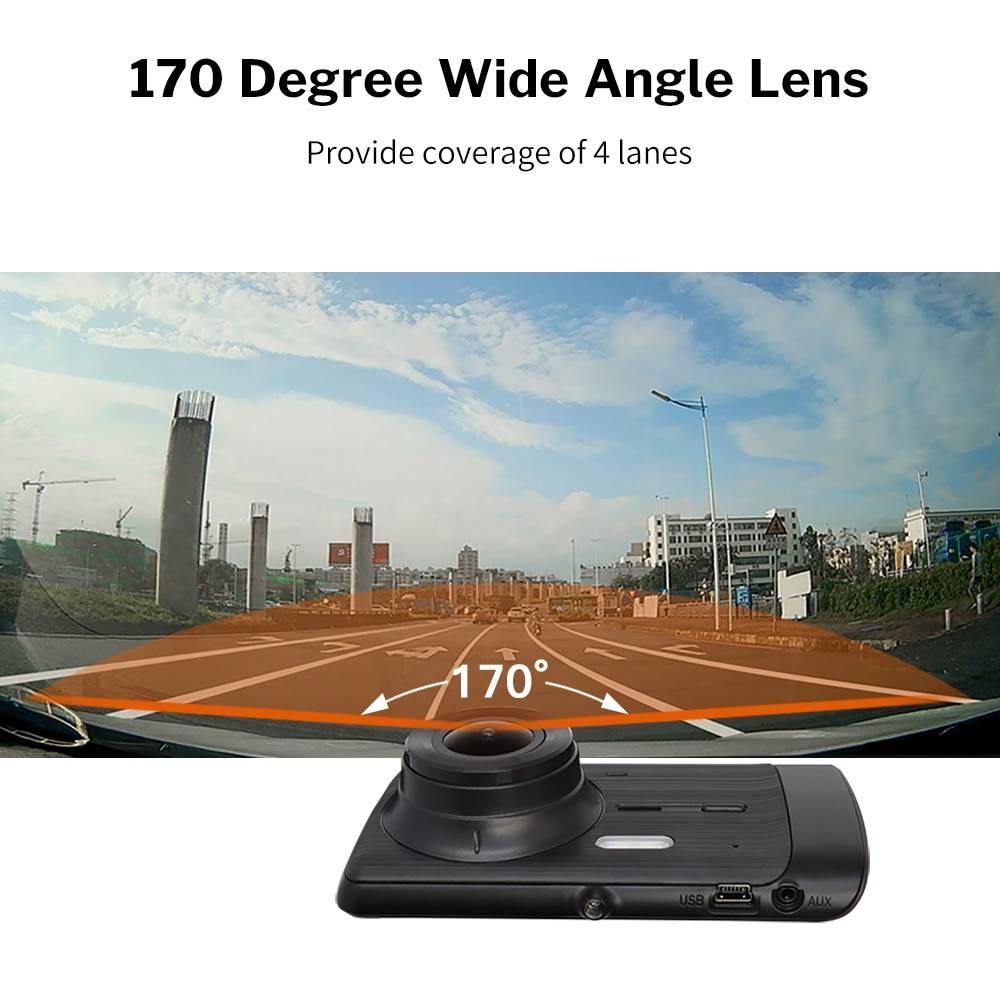

- Front lens: Six glass elements, 170-degree wide-angle, F1.8 aperture.
- Rear lens: Four glass elements, 140-degree wide-angle, F2.0 aperture (selected packages only).
- On-device display: 1.47-inch IPS screen with 16:9 ratio for immediate playback verification.
Wi-Fi Connectivity, Viidure App, and MicroSD Storage Architecture
The integrated Wi-Fi module pairs the dash cam for trucks with the Viidure mobile application on iOS and Android, enabling wireless video transfer and remote configuration without removing the memory card. The microSD card slot supports Class 10 or higher cards ranging from 16GB to 128GB (card not included in any package option). Loop recording automatically overwrites the oldest unlocked files when the card reaches capacity, while the G-sensor detects sudden impact events and locks the related video file against overwrite. Audio recording is supported and synchronized with video, requiring compliance with local privacy and consent regulations before activation.
Practical Cabin Evaluation, Category Comparison, and Best-For Segmentation
The 4K front recorder body measures 3.6 by 0.86 by 1.3 inches, seating discreetly behind the windshield without obstructing the forward field of vision when mounted along the upper tint band. The 3.5-meter car charger cable routes along the headliner, down the passenger-side A-pillar behind the trim, under the door sill plate, and into the 12V auxiliary socket in approximately 20 minutes. The 6-meter rear camera cable (on selected packages) reaches the tailgate or rear window on most pickup trucks and commercial cabs without splicing. The parking-monitor power cable operates on 12V DC only, requiring a verified 24V-to-12V converter for trucks with 24V electrical systems. The operating temperature range of -20 degrees Celsius to +70 degrees Celsius covers sustained summer cabin heat without lithium battery swelling risk.
Compared to a basic 1080P-only dashboard camera, this 4K GC4653 architecture captures license plate detail at highway speed that 1080P sensors cannot resolve. Compared to a battery-powered cordless dash cam, this corded 12V architecture eliminates recharge cycles and sustains continuous loop recording whenever the ignition is on. Compared to a factory integrated OEM recording system, this aftermarket overlay installs reversibly without CAN bus integration or factory mirror replacement.
Best for: Long-haul truck drivers, fleet operators, and commercial vehicle owners requiring 4K front video evidence for insurance claims, traffic dispute defense, and route documentation on 12V or 24V (with converter) vehicle electrical systems.
When to choose an alternative: Operators of 24V trucks unwilling to install a verified 24V-to-12V converter should select a native 24V dash cam. Drivers needing sustained parking surveillance beyond 12 hours should upgrade to a dedicated hardwired parking kit with a dedicated battery module.
| Operational Strengths (Pros) | Technical Considerations (Cons) |
|---|---|
| 4K GC4653 front sensor captures license plate detail at 30 fps | Parking-monitor power cable rated for 12V only, requires 24V-to-12V converter for 24V trucks |
| Eight package configurations covering front-only, rear, GPS, and parking combinations | MicroSD card (16GB to 128GB Class 10) not included in any package option |
| -20 degrees Celsius to +70 degrees Celsius operating temperature range | Wi-Fi app compatibility varies by phone model, operating system, and Viidure app version |
Engineering Specifications and EAV Parameter Matrix
The following Entity-Attribute-Value table summarizes the verified optical, electrical, and physical parameters of the 4K driving recorder.
| Engineering Attribute | Verified Specification (SI Units) |
|---|---|
| Front Video Resolution | 3840 by 2160 (4K Ultra HD) at up to 30 fps |
| Rear Video Resolution | 1920 by 1080 (Full HD) at 25 fps (selected packages only) |
| Image Sensor | GC4653 (8MP front, 2MP rear on relevant packages) |
| Front Lens Configuration | 6 glass elements, 170-degree wide-angle, F1.8 aperture |
| Rear Lens Configuration | 4 glass elements, 140-degree wide-angle, F2.0 aperture (selected packages) |
| On-Device Display | 1.47-inch IPS screen, 16:9 ratio |
| Video Encoding and Format | H.264 encoding, TS container format |
| Memory Card Support | 16GB to 128GB microSD, Class 10 or higher (not included) |
| Connectivity | Wi-Fi with Viidure mobile app on iOS and Android |
| GPS Logger | External GPS module on selected package options only |
| Core Functions | Loop recording, G-sensor emergency lock, audio recording, NightShot, WDR, 3D DNR, parking monitor (selected packages) |
| Power Source and Charger Cable | Corded electric, 12V car charger with 3.5-meter cable |
| Rear Camera Cable | 6.0 meters on selected rear-camera package options |
| Operating Temperature | -20 degrees Celsius to +70 degrees Celsius |
| Listed Dimensions | 91.4 by 21.8 by 33.0 mm (3.6 by 0.86 by 1.3 inches) |
| Listed Certifications | CE, FCC, RoHS (verify on product documentation before relying) |
| Included Package Components | 4K front dash cam, car charger (3.5 m), user manual, electrostatic sticker, cable buckle; optional external GPS module, 1080P rear camera (6 m cable), and parking-monitor power cable (12V) depending on selected variation |

Dash Cam for Trucks FAQs: Package Options, Power, and Storage
-
What distinguishes a dash cam for trucks from a standard passenger vehicle dash cam?
- A dash cam for trucks supports 12V and 24V (via converter) electrical systems, longer rear cable routing, and parking-monitor configurations suited for commercial cabs. Passenger dash cams typically lack parking-monitor cables and 24V converter guidance.
-
Can the parking-monitor power cable be connected directly to a 24V truck system?
- No. The parking-monitor power cable is rated for 12V DC only. Connecting directly to a 24V truck power source may damage the accessory and the vehicle electrical system. Use a verified 24V-to-12V converter and consult a qualified installer.
-
Does every package option include the rear camera and GPS module?
- No. The 8 package configurations vary: front-only, front plus parking cable, front plus rear, front plus rear plus parking, front plus GPS, front plus GPS plus parking, front plus rear plus GPS, and the full configuration. Confirm the selected variation at checkout.
Package Contents and Installation Workflow
The listed configuration includes the 4K front dash cam, 3.5-meter car charger, user manual, electrostatic sticker, and cable buckle. The external GPS module, 1080P rear camera with 6-meter cable, and 12V parking-monitor power cable are included only on selected package options. A Class 10 microSD card (16GB to 128GB) is required for recording and is not included in any package. Installation requires mounting the front camera clear of driver visibility, routing the charger cable along the headliner and passenger A-pillar, routing the rear cable (if applicable) to the tailgate, and inserting a compatible microSD card before power-on. For 24V truck installations, consult a qualified installer for the 24V-to-12V converter wiring. Shipping is available to the United States, Canada, and Mexico with bilingual EN/ES technical support. Explore our 4K dash cam collection and our backup cameras for trucks for complementary recording solutions.
