Backup Camera for Truck | 4-Channel 1080P WiFi Dash Cam with Sony IMX307 Sensor
Backup Camera for Truck Optics: Four-Channel Architecture and 170-Degree Wide-Angle Lenses

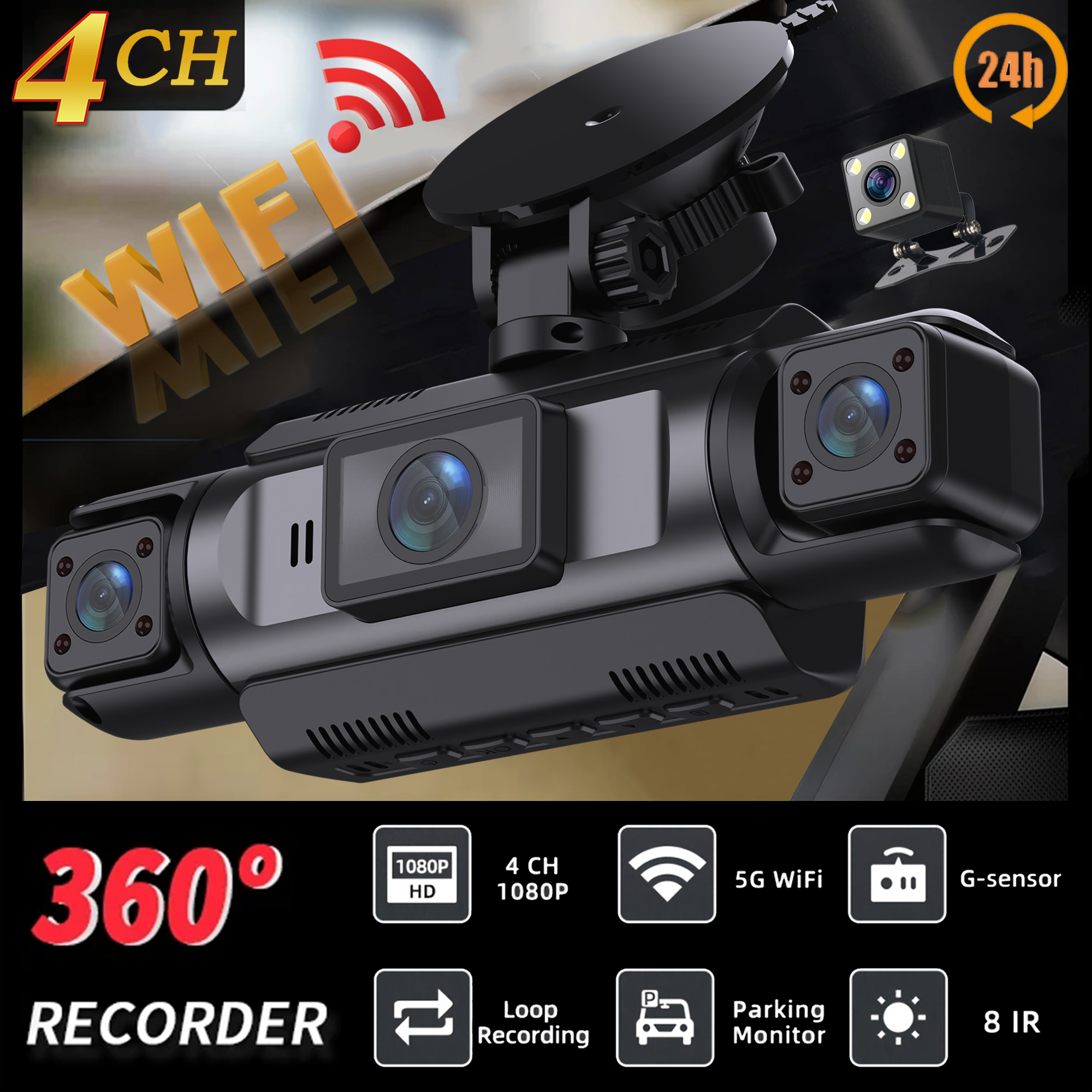

The four synchronized capture channels record front, left, right, and rear video simultaneously at 1920 x 1080 resolution and 30 fps. A 170-degree wide-angle lens expands the field of view, eliminating blind spots that single-lens front dash cams cannot cover. The left and right cameras rotate independently during installation to align with the mounting geometry of crew cab, extended cab, or box truck configurations. Unlike a wireless backup camera for truck that depends on RF transmission subject to interference from steel cabs and trailer hitches, this wired system routes a 6-meter rear camera cable directly to the main unit, preserving signal integrity across the full vehicle perimeter.
- Four recording channels: Front, left, right, and rear synchronized capture at 1920 x 1080 / 30 fps.
- 170-degree wide-angle lens: Broader road and vehicle-area view for truck, van, SUV, and car coverage.
- 3.5-inch IPS display: Built-in 16:9 on-device screen for immediate playback without phone pairing.

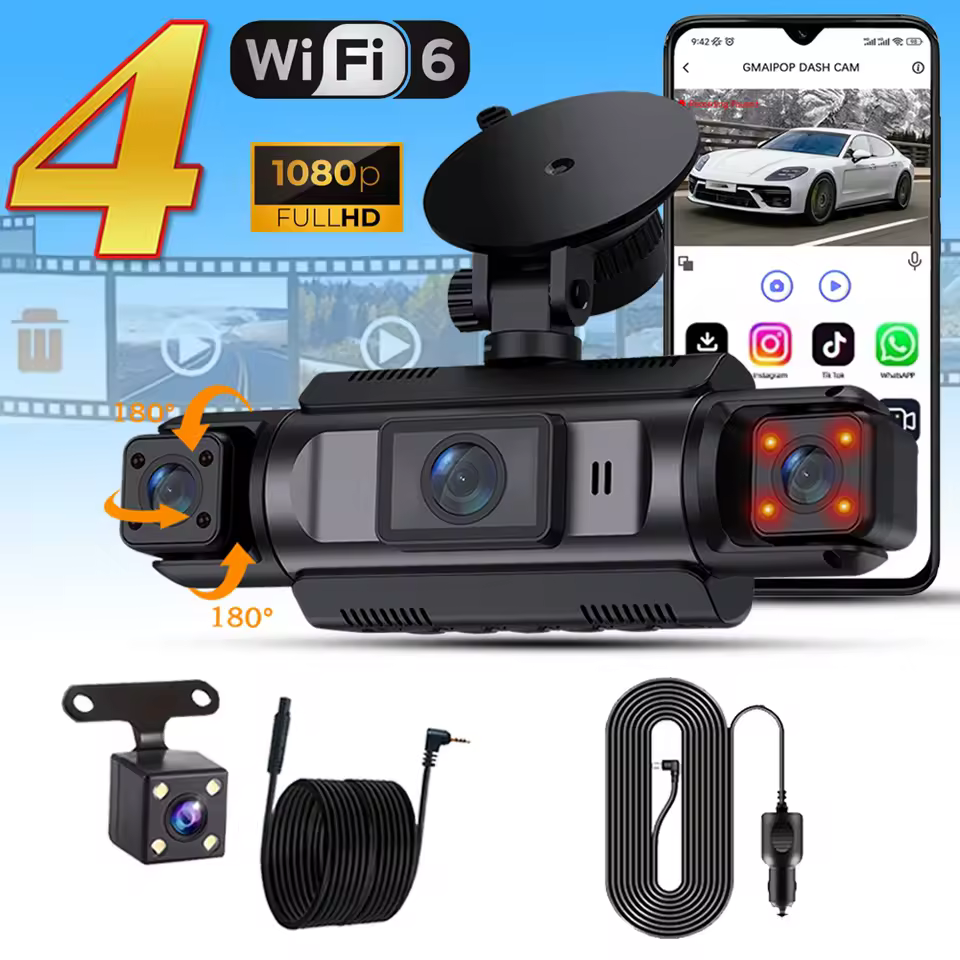

- Adjustable side cameras: Left and right cameras rotate independently to fit mounting geometry.
Infrared Night Vision, G-Sensor Event Protection, and Parking Monitoring for Truck Security
The F2.0 aperture pairs with a Sony IMX307 image sensor and infrared illumination to sustain low-light recording quality. Loop recording replaces the oldest unlocked files when the microSD card reaches capacity, while the G-sensor locks video associated with sudden impacts through automated file locking. Parking monitoring and motion detection trigger recording on movement or collision when the system is connected to continuous power. Recording quality varies with weather, ambient lighting, windshield condition, camera position, and vehicle vibration, so users should validate footage clarity against their specific parking environment before relying on it for incident documentation.
- Low-light recording: F2.0 aperture, Sony IMX307 sensor, and infrared illumination.
- Loop recording: Automatic overwrite of oldest unlocked files when storage fills.
- G-sensor protection: Impact-triggered file locking to preserve event footage.
- Parking monitoring: Supported when installed and powered per manufacturer instructions.
- Motion detection: Configurable recording trigger through device settings.
This system is a recording and visibility aid. It does not replace mirrors, a walk-around inspection, blind-spot checks, or safe reversing practices. Before backing, inspect the area behind and around the vehicle for people, objects, and other hazards. For official US rear-visibility guidance, review the NHTSA back-over prevention resource.
WiFi App Connectivity, Storage Architecture, and On-Screen Playback for Truck Cabins
The built-in WiFi module enables compatible phone access for live viewing, video playback, and file transfer without removing the memory card. The manufacturer lists Framefox and Viidure as compatible apps for iOS and Android smartphones. App availability, features, and performance vary by smartphone model, operating system, region, and software version. WiFi serves app connectivity only; video transmission between the four cameras and the main unit remains wired for signal stability, which is why this product is classified as a wired system rather than a wireless or Bluetooth alternative. For broader technical background on vehicle recording technology, consult the Wikipedia dashcam guide.
- WiFi connection: Live view, playback, and file transfer via Framefox or Viidure app.
- Memory card support: microSD / TF card up to 128 GB.
- Recommended card type: Class 10 microSD formatted as FAT32.
- Video format: AVI files with H.264 encoding.
For additional vehicle-video options, browse our dash cams for trucks, compare with the Clear Dash Cam 2.5K with GPS, or explore our rearview mirror camera systems.
Corded Installation, Power Interface, and 12 V Vehicle Compatibility
The corded vehicle DVR connects via a USB 2.0 interface rated at 5 V DC and 2.5 A, designed for aftermarket installation on compatible 12 V electrical systems. The listed configuration includes a 3-meter car charger cable and a 6-meter rear camera cable. A built-in 150 mAh lithium battery provides basic device operation and file protection during power interruptions. The on-screen display supports English, Spanish, French, Chinese, Japanese, Korean, Russian, and other listed languages. Before ordering, confirm mounting area, cable-routing path, power connection, display position, rear-camera placement, and vehicle-specific installation requirements.
Safety warning: Install the device where it does not obstruct the driver’s view, interfere with airbags, block vehicle controls, or create distractions. Route cables away from moving parts, sharp edges, high-heat areas, pedals, steering components, and airbag deployment zones. Before drilling, hardwiring, or modifying vehicle wiring, consult a qualified automotive installer if you are not experienced with vehicle electrical systems.
Technical Specifications
| Attribute | Specification |
|---|---|
| Fitment Type | Universal-Fit (corded electric, 12 V vehicle systems) |
| Camera Channels | Front, left, right, and rear synchronized recording |
| Resolution | Up to 1920 x 1080 at 30 fps |
| Viewing Angle | 170-degree wide-angle lens |
| Image Sensor | Sony IMX307 |
| Aperture | F2.0 |
| Display | 3.5-inch IPS, 16:9 ratio |
| Recording Features | Loop recording, G-sensor, parking monitoring, motion detection |
| Storage Support | microSD / TF up to 128 GB; Class 10 recommended; FAT32 format |
| WiFi and Apps | WiFi module; Framefox and Viidure app compatibility |
| Power Input | USB 2.0, 5 V DC / 2.5 A |
| Cable Length | 3 m car charger cable and 6 m rear camera cable |
| Battery | Built-in 150 mAh lithium (file protection only) |
| Operating Temperature | -20 C to +65 C |
| Listed Compliance | CE and FCC Part 15 |
Frequently Asked Questions About Truck Camera Systems
-
What is the best camera for my truck?
- The best camera for your truck depends on perimeter coverage needs. This 4-channel wired system records front, left, right, and rear views simultaneously in Full HD 1080P, making it suitable for drivers requiring complete vehicle documentation beyond a single front-facing lens.
-
What is the best security camera for trucks when parked?
- This system supports parking monitoring when connected to continuous power. The G-sensor detects impacts while parked, and motion detection triggers recording on movement, making it a viable security solution for parked truck protection.
-
Are cameras in trucks legal for US drivers?
- Yes. Dash cams and backup cameras are legal in all 50 US states when installed without obstructing driver visibility. Mount the device outside the windshield wiper sweep area and avoid blocking airbag deployment zones.
Package Contents and Aftermarket Installation Components
The listed configuration includes the dash cam unit, four camera components, a 3 m power cable, a 6 m rear camera cable, and applicable mounting accessories for aftermarket truck camera installation. Package contents can vary by selected product option and supplier batch. Review the selected variation and checkout details before ordering. Shipping available to United States, Canada, and Mexico with bilingual EN/ES technical support for installation and compatibility inquiries.
Great
The camera is good for the money, works well, and has parking guidelines.
Good camera
Excellent camera. Everything arrived. The packaging was sealed. The camera works.
I received the product very quickly. Everything looks great. Thank you to everyone who participated in the shipping and delivery of the product.
Fast delivery. Good quality product! Good picture for the price.
This is a very good product!! !
everything works well
The camera is good, the picture is excellent, it's clear at night without backlight. 170 ° horizontally 140 ° verticals
Good camera, meets all stated specifications, I recommend it.

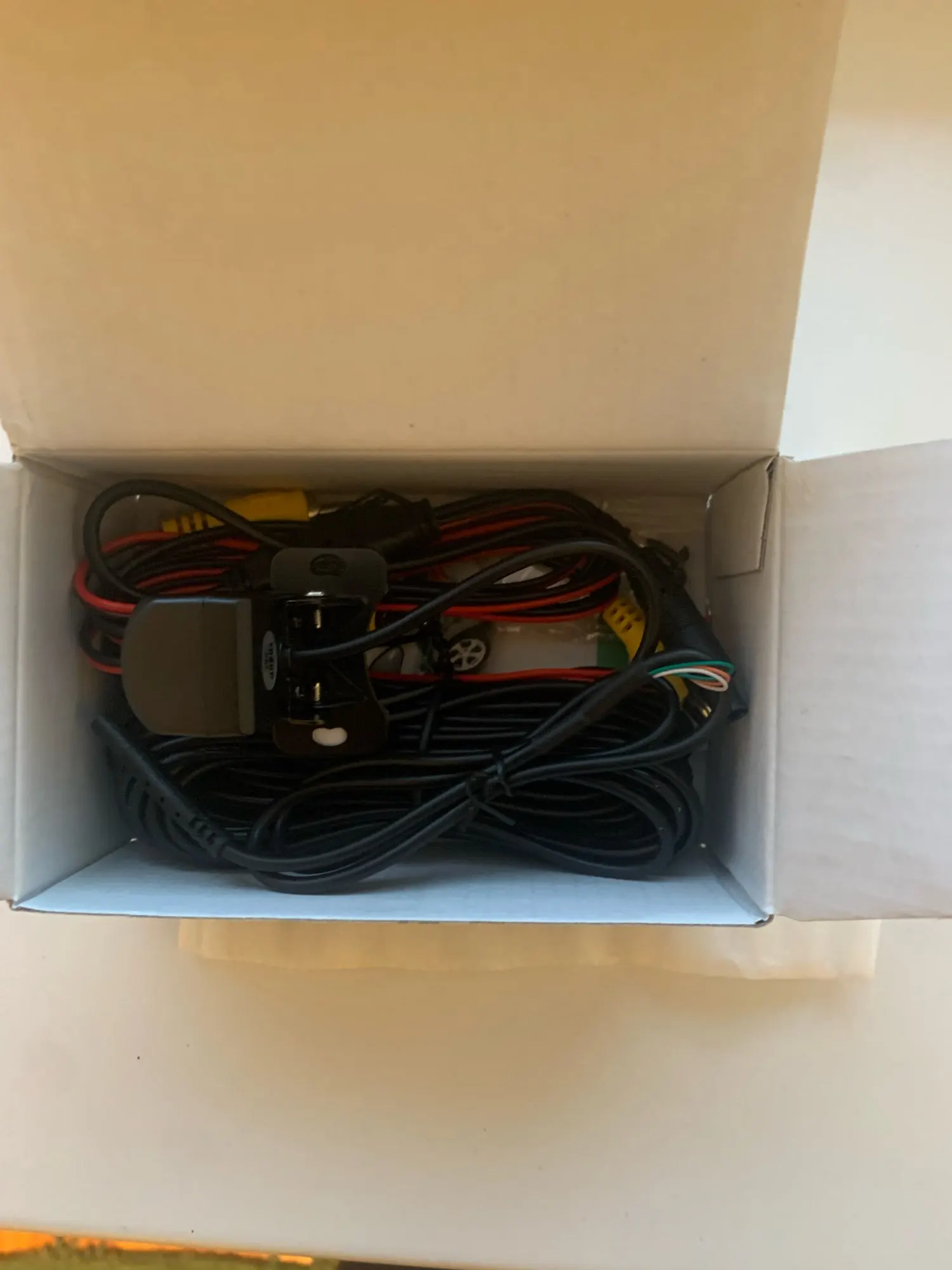

The camera arrived well packaged, not damaged, looks nice. The dimensions of the camera mounting plate are suitable.
Delivered super fast. Installed immediately and works as expected. The function of the three loops that you can cut through is not clear to me but not necessary in March anyway.

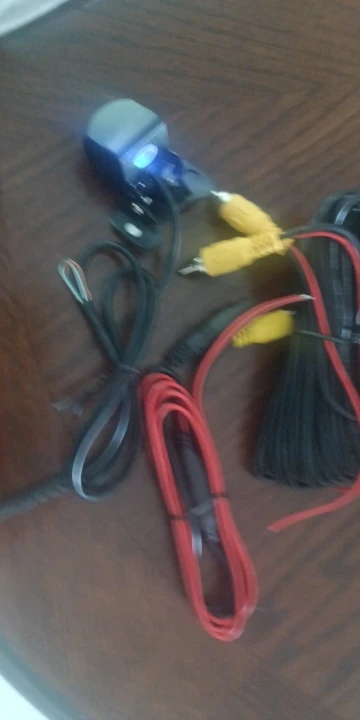

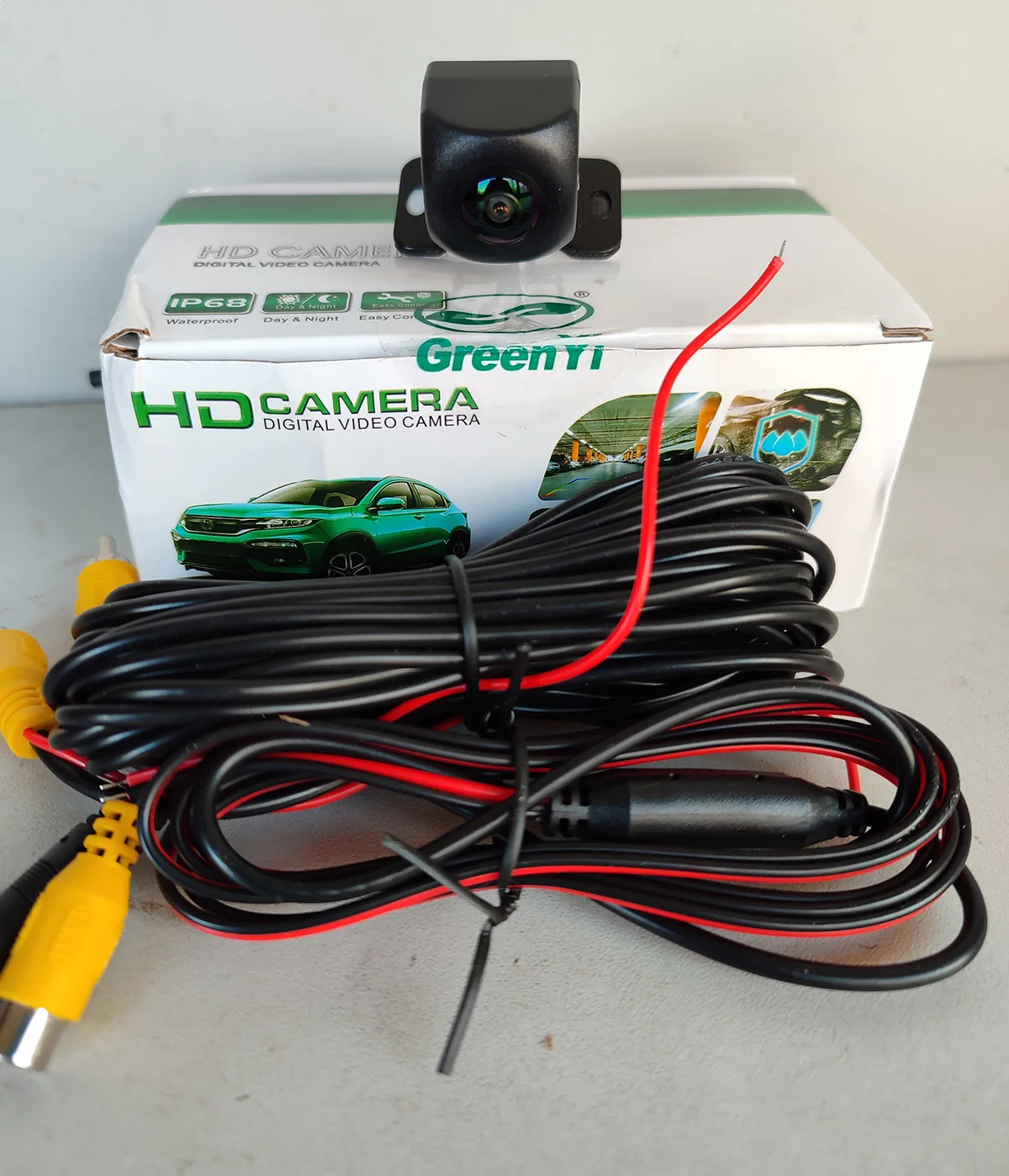

Delivered in about 2 weeks to Thailand, can use with 2 systems, just cut the red wire, clear image, easy to install, recommended to wait a bit, affordable price, free shipping, durability needs to be checked again, neat setup.
